Multifunctional Automated Communication Intelligence Post

It is intended for estimation of the electromagnetic environment, search, detection and express-analysis of radio emission in the HF and UHF bands (0.1–3800 MHz). The complex has 4 independent channels with a width of up to 60 MHz each, allowing to register up to 256 signals at a time.The complex is stationary and comes complete with:

A telescopic mast (12 m);
Omni-directional antennas of the VHF-range with amplifiers for assessing the radio-electronic situation (2 pcs.);
Directed logo-periodical UHF-band with amplifiers for the radiation analysis (4 pcs.);
Omni-directional antennas of the HF range (10-80 m) (2 pcs.);
RF cables unit for connection;

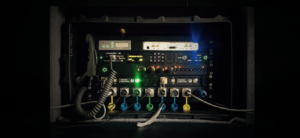

A protected case for work and transportation:

switching and pre-selection unit;
a reception and pre-processing unit;
a power supply unit;
an uninterruptible power supply source;
A protected Dell Latitude 14 “Rugged Notebook in a special complete set;
Specialized software for its own operating system HorticaOS (PlastunEW, gqrx, gnuradio-companion, CubicSDR);
Spare parts and accessories.

SPECIFICATIONS


Frequency band	0.1-3800 MHz
Number of independent channels (up to 60 MHz each)	4
Number of signals registered simultaneously, up to	256
Selectivity by the paging signals	-50 dBm
Viewing band and simultaneous demodulation	60 MHz
Number of channels demodulating simultaneously	40
Dynamic range	70 dB
Number of antenna systems 100-500 MHz	4
Number of antenna systems 500-3000 MHz	2
Number of antenna systems 22-100 MHz	1
Number of antenna systems 3-30 MHz	1
Power supply	160-250 V
Battery life	4 hrs
