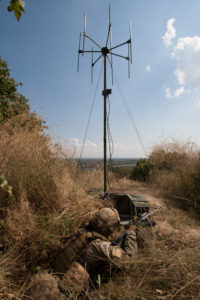

PLASTUN RP-525 is intended for positioning of any emitting radio source (for example portative radio stations, UAV, ECW, etc.) , automated high-speed radio-monitoring, processing and recording interception data. Real-time system exchanges data for reconciling location information sources of radio emission and their characteristics in order to form the only intelligence field.Complete set:

• antenna feed system, radioswitch;
• digital signal processing unit, communication link device;
• automated workplace and special software;
• shoulder pads for transportation.

Advantages:

• does not require a special place to deploy; capable of configuring to optimize problem solving;
• could be used for real-time synchronious direction findning;
• was designed taking into account the battlefield experience gained in the east of Ukraine, where the device is being actively used;
• has a simple interface with touchscreens, any feature is available at a three-touch distance;
• high bearing accuracy of different signal types;
• uses the algorithms of direction-finding clustering with a common source of radiation for precise localization;
• detection of noise-like broadband signals and FHSS signals;
• high-speed display system that improves the quality of radio signals analysis.

SPECIFICATIONS

Frequency range	25–525 MHz
Standard deviation error of direction finding in range 30–90 MHz	3 deg.
Standard deviation error of direction finding in range 90–525 MHz	1.5 deg.
Scanning speed, better than	1 GHz / s
Dynamic range, better than	66 dB
Bandwidth, better than	21 MHz
Frequency resolution (“Overview” mode)	12.5 kHz
Minimal time of direction finding, less than	15 ms
Systems deployment time, less than	30 min
